DIY Intelligent Tracking Line Smart Car Kit

(18 customer reviews)

$39.95

5616 in stock

Add To Wishlist
Add To Wishlist
SKU: 32767691720 Categories: , ,

Description

Installation Manual:http://attach01.oss-us-west-1.aliyuncs.com/IC/DIY-Manual/10167.pdf

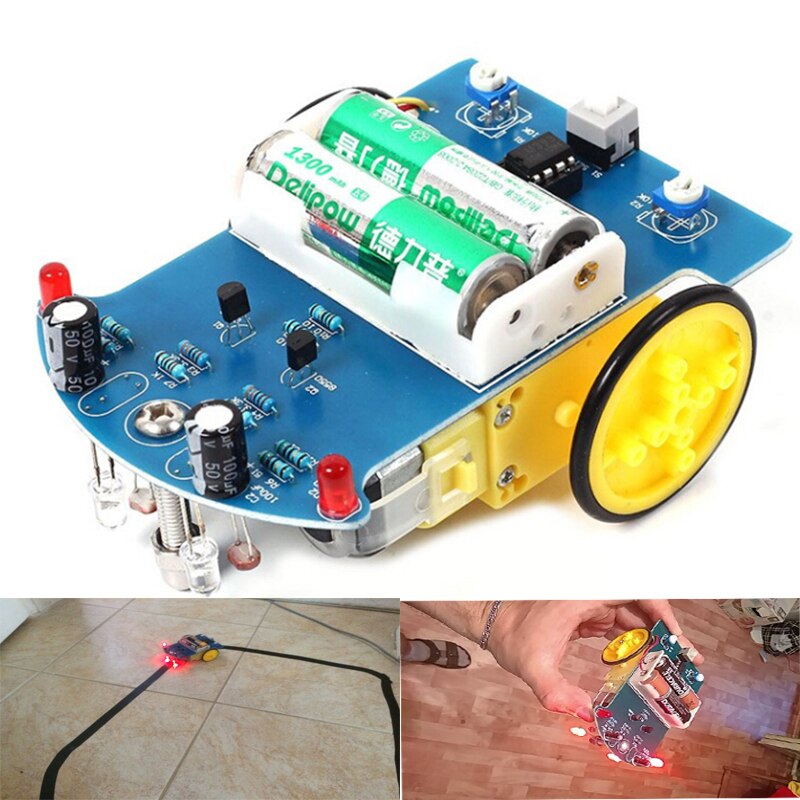

1. Introduction.

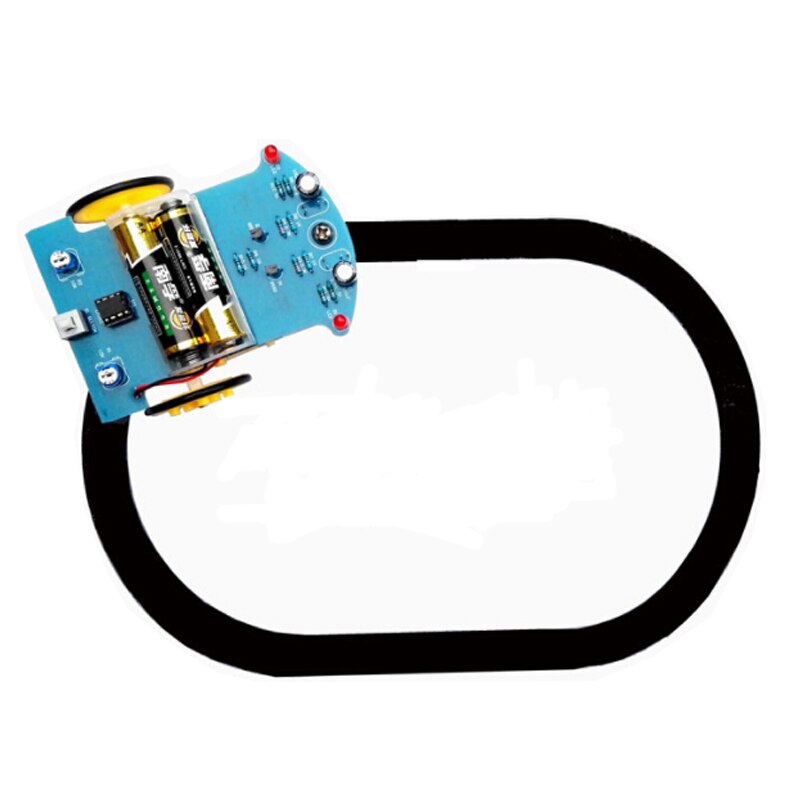

There is a 16 mm wide black runway in the white field.Our tracking car can drive along the black runway automatically.No matter how the runway is bent, the car can be driven automatically.We all know that the reflectivity is different when the light source to the white objects and black objects.Here we use red light source.The light is reflected through the ground to the photoresistor.By detecting the resistance of the photosensitive resistor can determine whether the car is driving in the white area.If the detection is black runway, then the car to change the direction of driving and motor will slow down or even stop and Red LED OFF on PCB front side.Drive the car in the opposite direction so that the car is always running along the runway.

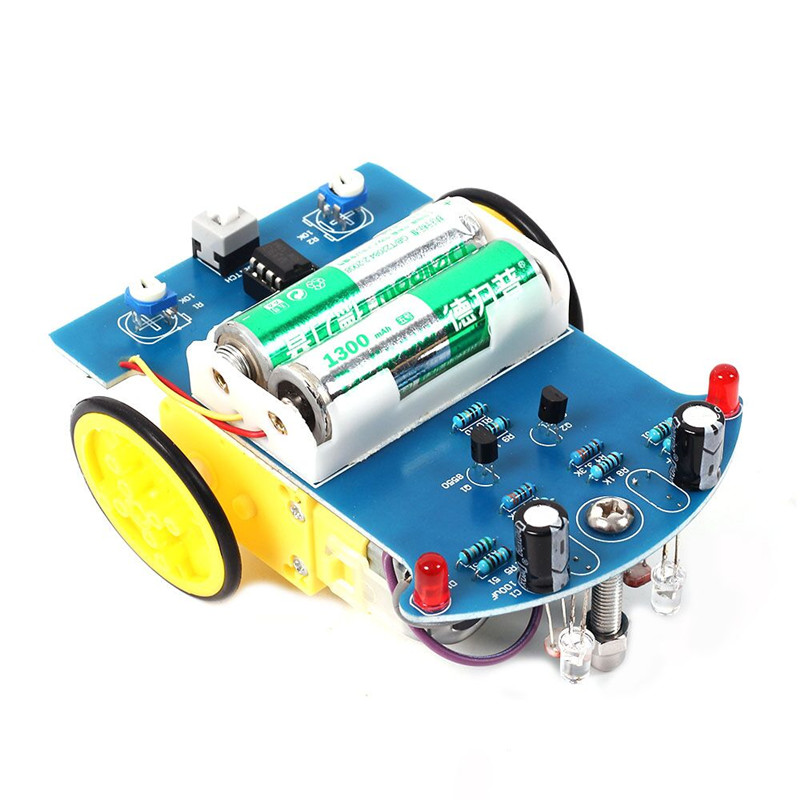

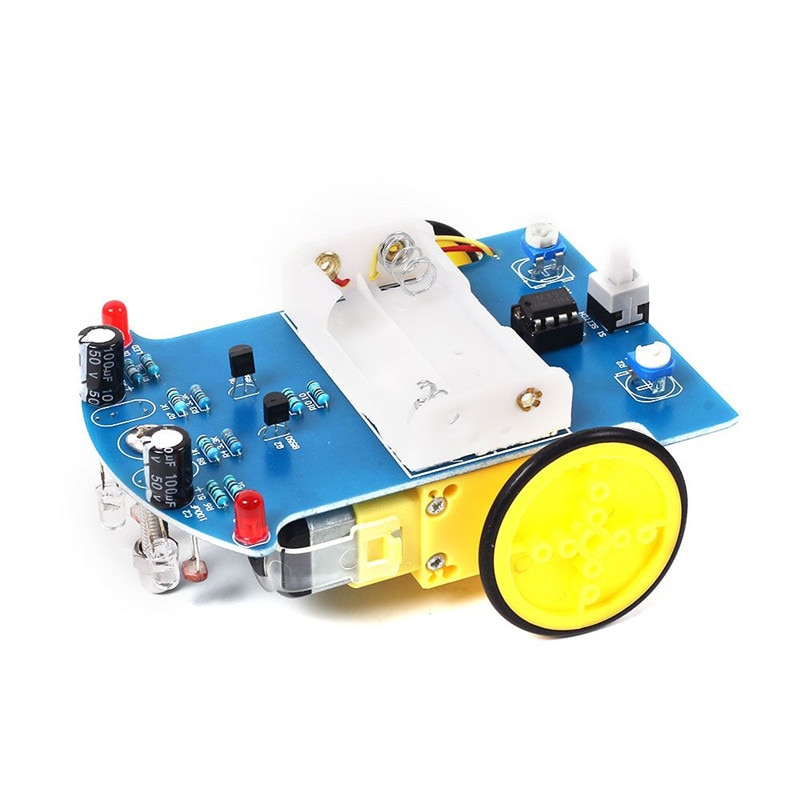

2. Overview.

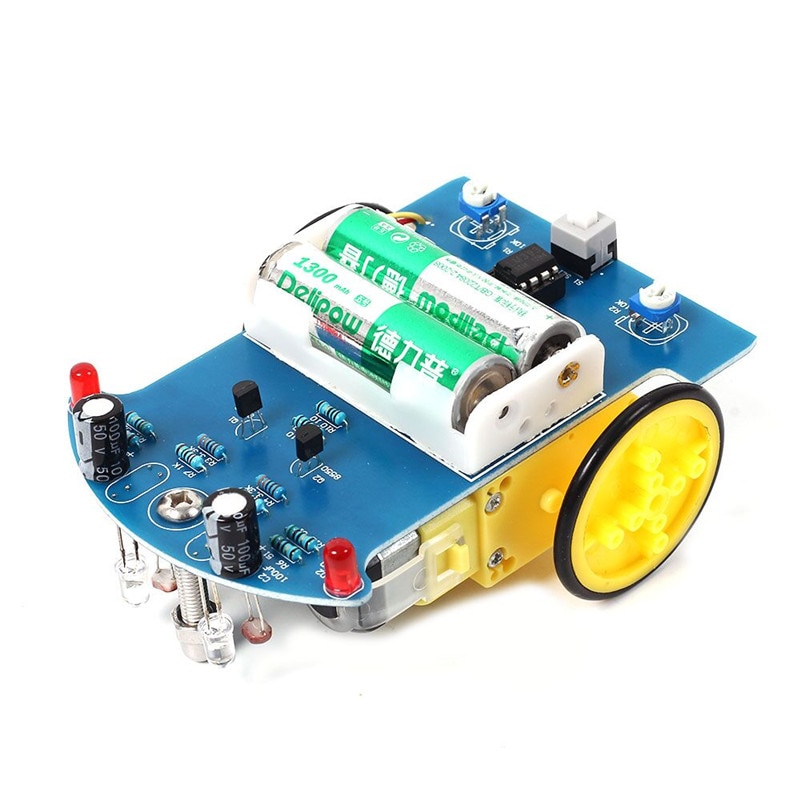

1>. Model: D2-1

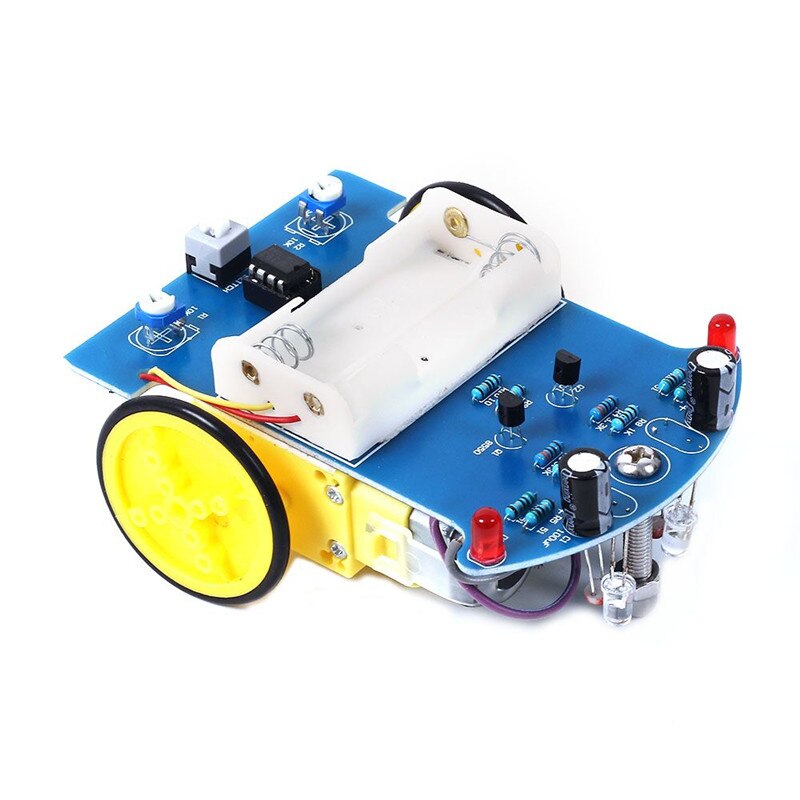

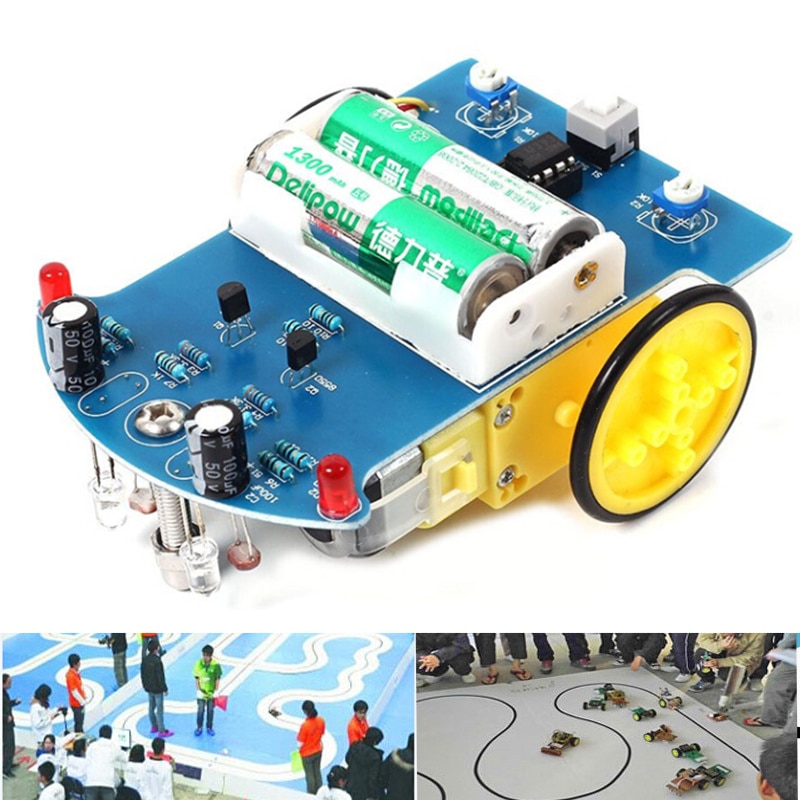

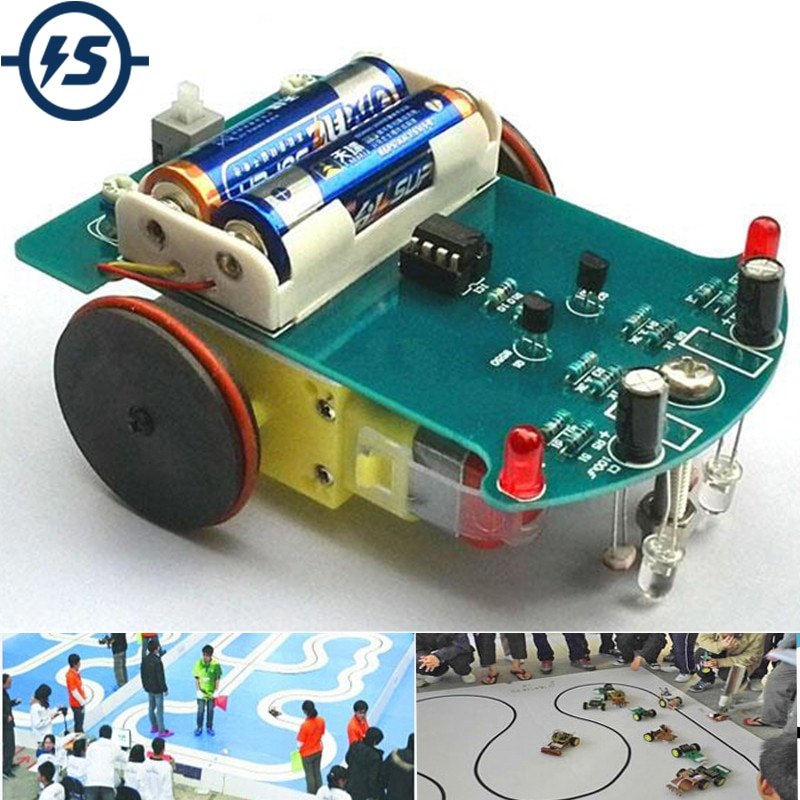

2>. Name: D2-1 Intelligent Tracking Car DIY Kit

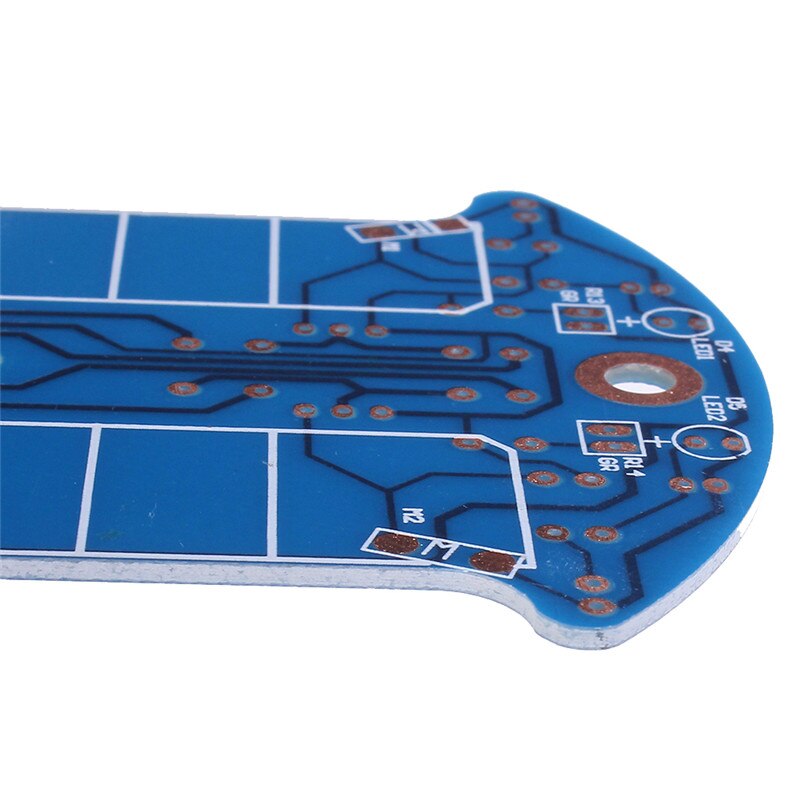

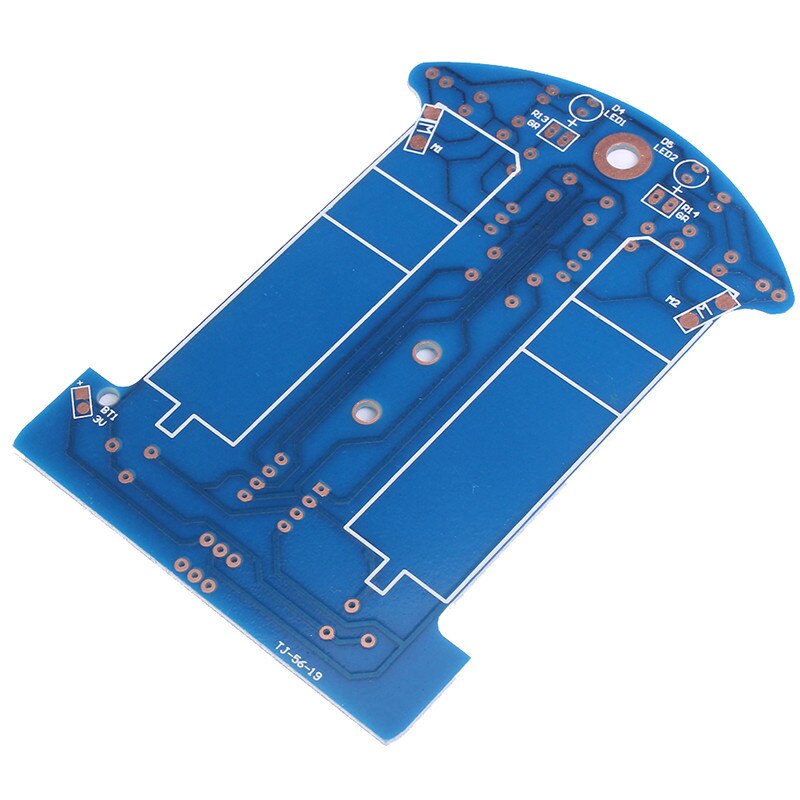

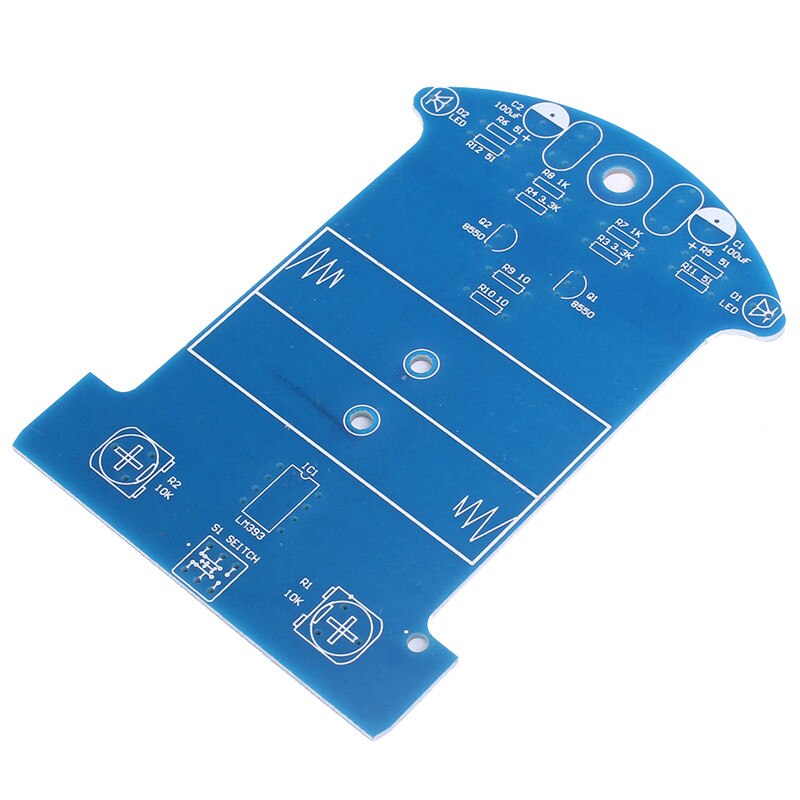

3>. PCB Size:105*72*1.6mm

4>.Installation dimension:105*85*46mm

5>. Work Voltage:3V

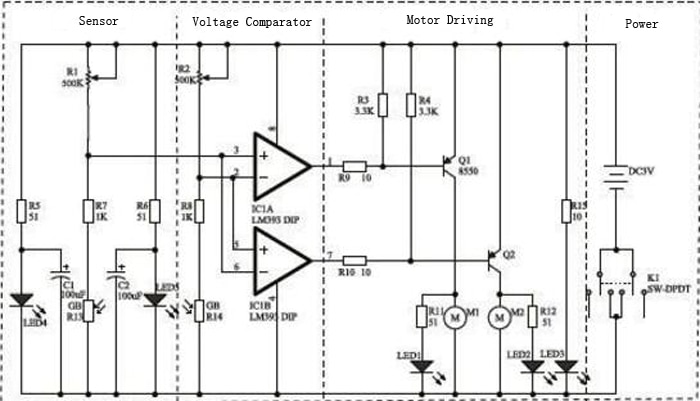

3. Schematic.

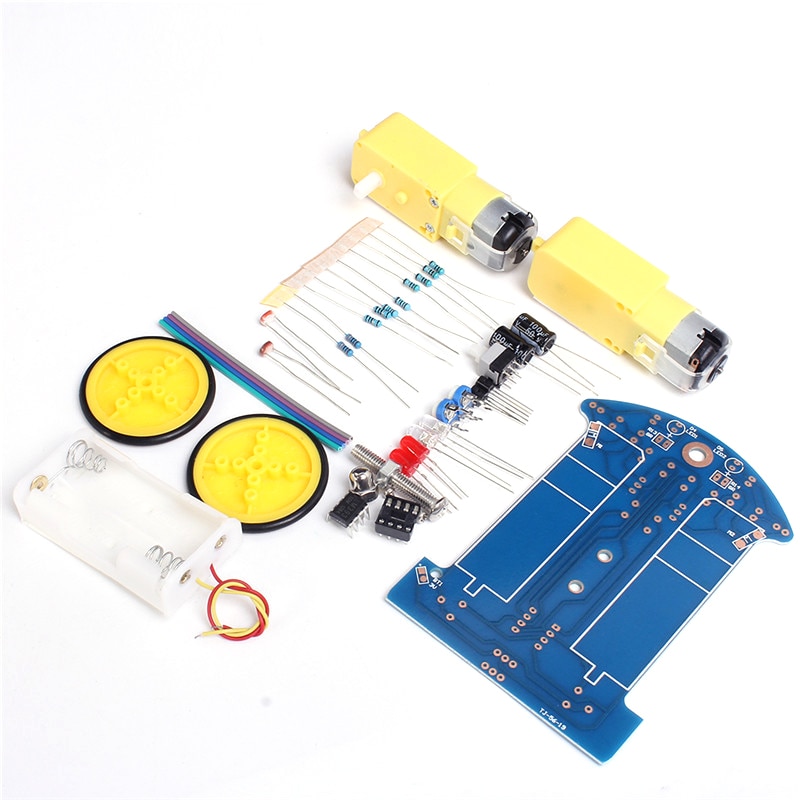

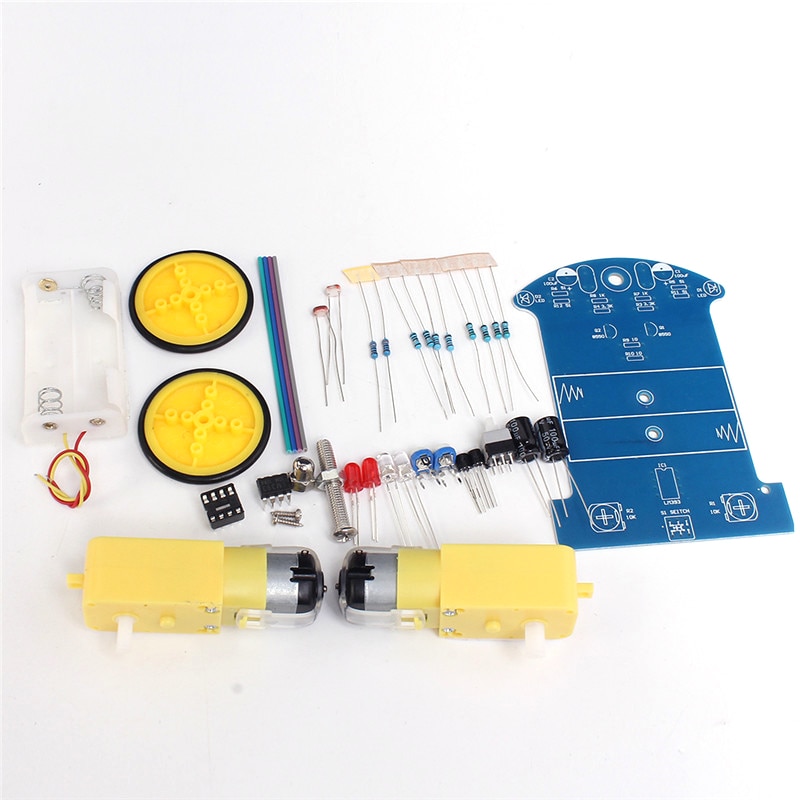

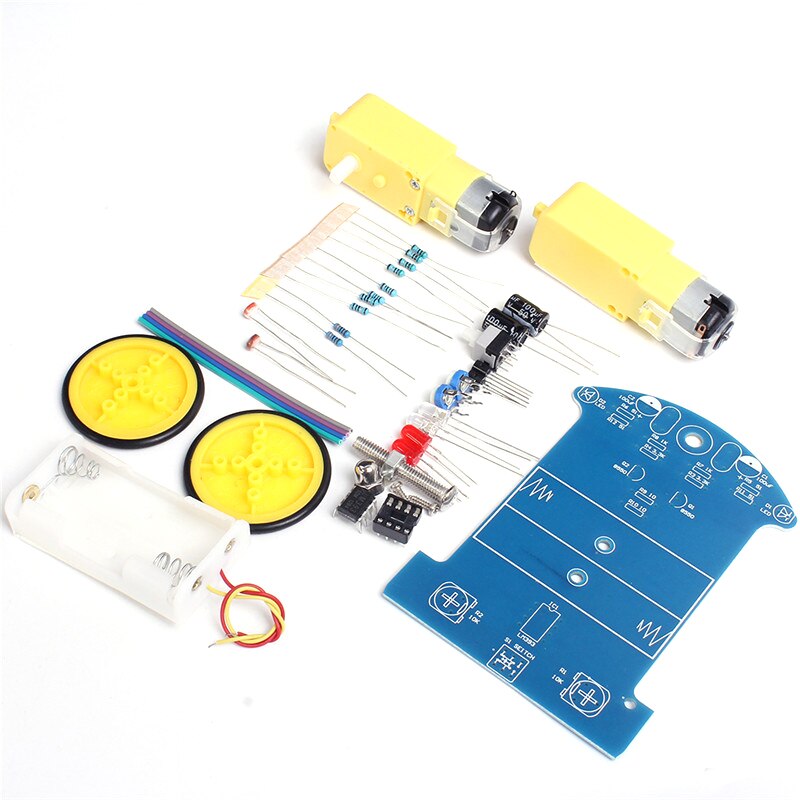

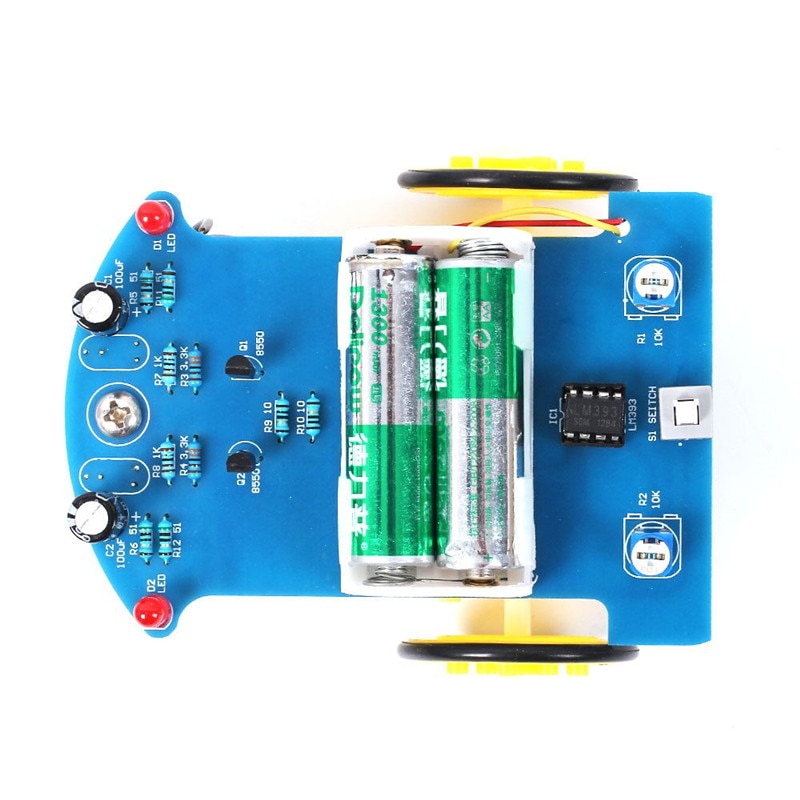

4. Component listing.

NO.

Component Name

PCB Marker

Parameter

Quantity

1

LM393

IC1

DIP-8

1

2

IC Socket

IC1

DIP-8

1

3

Electrolytic Capacitor

C1,C2

100uF

2

4

Potentiometer

R1,R2

103 10K

2

5

Metal Film Resistance

R5,R6,R11,R12

51ohm

4

6

Metal Film Resistance

R7,R8

1K

2

7

Metal Film Resistance

R9,R10

10ohm

2

8

Metal Film Resistance

R3,R4

3.3K

2

9

Photoresistor

R13,R14

CDS5

2

10

Red LED

D1,D2

5mm

2

11

White LED

D4,D5

5mm

2

12

S8550

Q1,Q1

TO-92

2

13

Self-Locking switch

S1

6*6mm

1

14

DC Motor

M1,M2

2

15

Wheel

40mm

2

16

Tires

40mm

2

17

Gaster Screw

M5*20mm

1

18

Gaster Nut

M5

1

19

Gaster Screw Cap

M5

1

20

Cable

6mm

4

21

Battery Case

AA*2

1

22

PCB D2-1

105*72*1.6mm

1
